Elysium 21'6 Family

2026 Vision RV Elysium 21'6 Family Caravan Triple Bunk

The 2026 Elysium 21'6 Family Caravan represents the ultimate in luxury off-grid family touring. Specifically engineered for families who want to explore Australia’s most remote regions without compromise, this tandem-axle flagship offers unmatched durability, massive power recovery, and a sophisticated timber-free design. Featuring the triple bunk configuration, it provides a spacious and secure environment for the whole family, ensuring that your off-road adventures are as comfortable as they are limitless.

PRICING

TOW AWAY PRICE: $199,500

2026 CORE SPECIFICATIONS

ATM: 4500kg

Power & Solar: Massive 1540W solar array (14 panels) paired with a 460Ah lithium battery and a 3000W/120A Victron inverter/charger unit.

Water Management: 270L total fresh water capacity (3 x 90L tanks), an 86L grey water tank and a 14L stainless steel urine tank.

Smart Control: Garmin Connect 50 Digital Switching System via dual tablets (one fixed and one mobile) for centralised control of lighting, airbags, and the dust reduction system.

WARRANTY

7 Year Warranty for complete peace of mind

2yr Factory

5yr Extended (transferable to future owners)

CHASSIS, SUSPENSION & RUNNING GEAR

Hot-dipped galvanised tandem axle chassis (150mm x 50mm).

Heavy-duty trailing arm independent airbag suspension with twin shock absorbers per wheel.

Cruisemaster DO45

Ventilated disc brakes with Japanese bearings.

Large off-road wheels and tyres (285/70/R17) with a +35 offset.

Heavy-duty rear recovery points and modular rear bar for bolt-on accessories.

CONSTRUCTION & BODY

100% timber-free construction including all internal cabinetry.

Super strong monocoque composite shell providing unrivalled strength and insulation.

Single-piece honeycomb composite floor.

Industry-leading heavy-duty aluminium extrusion joining all external walls.

Electrical assist door connected to remote central locking for a superior seal.

Raptor-coated front storage box with dual sliding shelves and firewood rack.

On-board air compressor with outlet for tyre inflation and cleaning.

SLEEPING & LAYOUT

Queen-size master bed with premium pillow-top mattress.

Triple bunk configuration (F-3 Layout) with dedicated fans and charging points.

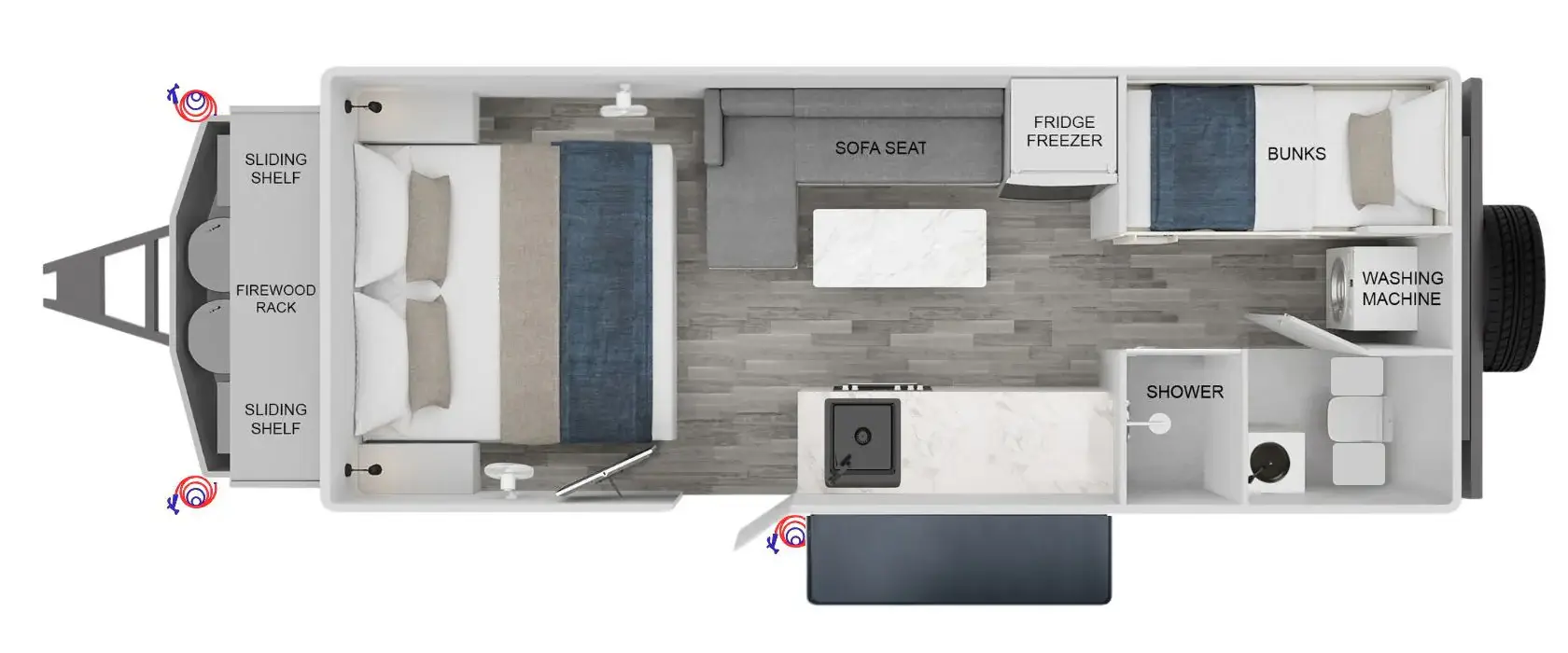

Spacious 21'6" family layout with maximum internal storage.

Stylish automotive leather lounge and dining area.

KITCHEN & DINING

Huge external kitchen with 3-burner cooker, sink with hot/cold tap, and slide-out pantry.

Massive 274L compressor fridge/freezer.

Induction cooktop plus a 4-in-1 microwave, grill, convection oven, and steamer.

Solid surface commercial-grade acrylic benchtops.

ENSUITE & LAUNDRY

Generous internal shower with channel drain.

Vision RV simple compost toilet with a separately plumbed urine tank.

Front load washing machine included as standard.

Dual external hot/cold showers.

ELECTRICAL & MONITORING

Massive 1760W Solar System for industry-leading energy harvest

Massive 920Ah Lithium Battery Bank (Includes additional battery upgrade)

3000W Victron Inverter (Runs the entire 240V system including A/C)

Victron Bluetooth-compatible charging and monitoring system

HEATING, COOLING & VENTILATION

Gusto Dust Reduction System (DRS) included as standard.

Reverse-cycle air conditioning.

12V fans for each occupant (Master bed and bunks).

Truma instant gas hot water system.

WINDOWS & FITTINGS

Flat panel Euro-style windows with integrated block-out blinds and flyscreens.

Aluminium cabinetry—laser-cut, folded, and powder-coated for durability.

Lightweight honeycomb door and drawer facias with soft-close runners.

LOCATION & CONTACT

This 2026 family unit is available to view at our Dealership

For more information, speak to our friendly sales staff.
